Crafted from the highest quality materials, the T500 is constructed with precision using 304-grade stainless steel, elevating its durability and performance to unmatched levels. The choice of 304-grade stainless steel speaks to the T500’s commitment to longevity and corrosion resistance, ensuring a robust and reliable distillation apparatus.
The T500 is perfect for distilling water due to the column’s stainless steel and copper saddles. These saddles allow for greater removal of impurities from the water compared to other forms of water distillation. See our instructions for distilling water for more information.
Perfect for crafting clean neutral alcohol, this innovative unit ensures precision in alcohol separation, producing alcohol of exceptional clarity and purity. The T500 will produce alcohol of up to 93% ABV and extract 95% of the alcohol in your wash. This neutral alcohol makes a great vodka and is the perfect neutral alcohol base for flavourings or making gins and other botanical spirits.
The T500 is ideal for use with the Create+ Boiler 25 L, as well as the Grainfather G30, G40, and G70 Brewing Systems.
Features:
• All-in-one reflux column and condenser
• For intermediate-advanced distilling
• Suitable for distilling water and alcohol
• Designed in New Zealand
• 304 Grade stainless steel

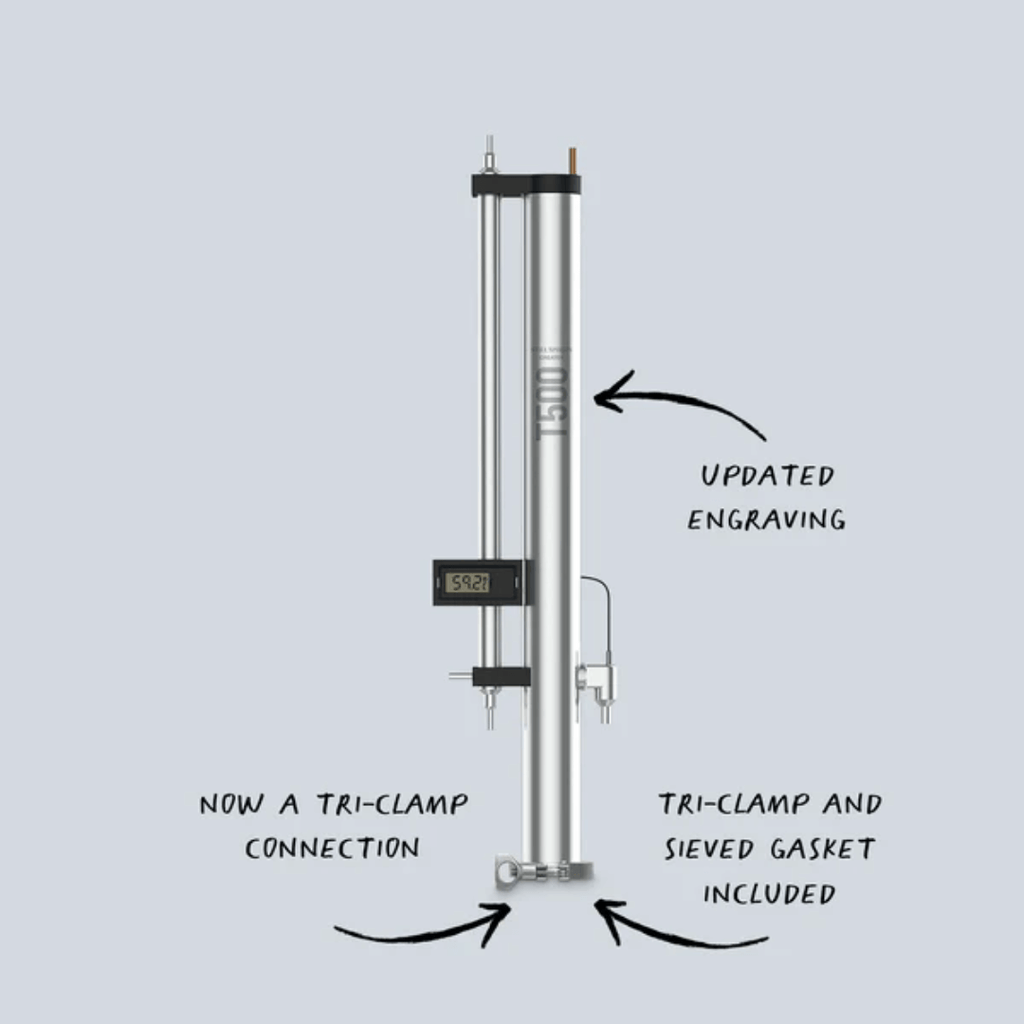

• 2" Tri-clamp connection
• Packed with stainless steel and copper saddles
• Faucet adaptor for ease of cooling water connection
Included
- Create+ T500 Column & Condenser
- Create+ 2" Tri-Clamp
- Copper and Stainless Steel Saddles (Pre-Packed)
- Digital Thermometer
- 2 x Cooling Water Tues
- Ceramic Boil Enhancers
- Tap Adapter Flow Controller with Kitchen and Garden Tap Adapters
- Instructions
Specifications
T500 Column & Condenser:
- Dimensions: H 69 cm x W 8.5 cm x D 16 cm
- Weight: 2.3-2.99 kg
- Warranty: 3 years
Ease of Use: Intermediate
- Average water use during distillation: You will use approx. 200 L (54 US Gal) per 25 L distillation.*
- Yield: 8 L (2.1 US Gal) of 40% ABV alcohol per 25 L (6.6 US Gal) wash (based on using the standard recipe of 6 kg (13.2 lb) of sugar**
- Purity: Distills at up to 93% ABV (186 US proof) before diluting to 40% ABV (80 US proof)**
* When used with the Create+ Water Flow Regulator.
**Per 25 L (6.6 US Gal) Turbo Classic 8 Production pack wash using the Create+ Boiler 25 L and T500 Reflux Condenser.
