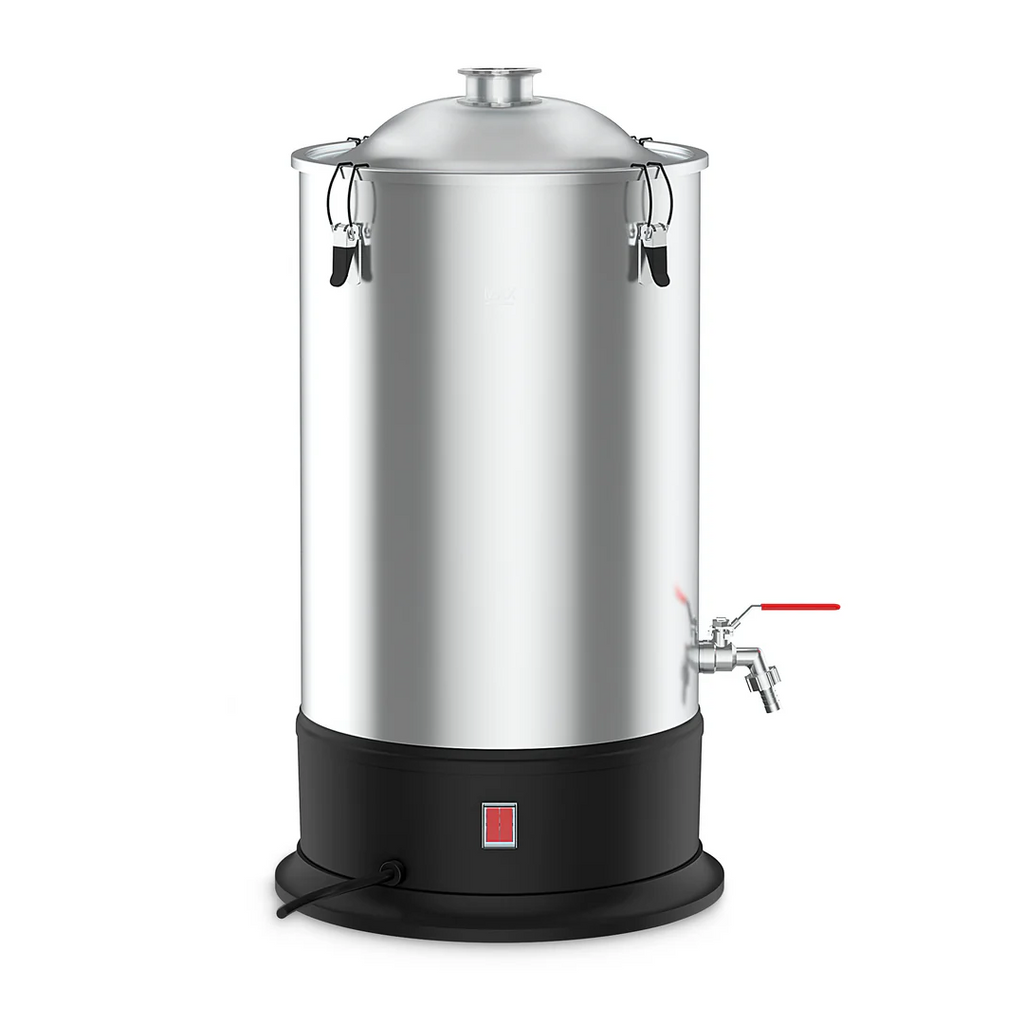

The Create+ Boiler 25 L is the recommended boiler base for use with the Create+ T500 Column & Condenser and the Create+ Alembic Copper Dome & Condenser and the traditional T500 condensers kits
With a maximum capacity of 25 litres, the Boiler 25 L is designed for distillers seeking precise control and versatile functionality.
It features dual element control switches to provide more control during distillation.
The Boiler 25 L comes complete with a 2" tri-clamp to DN40 threaded adapter, allowing for connection to 2" tri-clamp accessories.
Key Features:
- Dual element control switches provide more control during distillation - when both switches are in the ON position, the element will be supplied full power of 2200W. When one switch is in the OFF position, it will only consume 1100W of power.
- Designed in New Zealand
- Boil dry reset
- Thermal cut out fuse
- Waste discharge tap with a stainless-steel ball valve
- Boiler lid with 48 mm opening
- 25 L Boiler capacity
- Connects to 2" tri-clamp distilling accessories
- 304 grade stainless steel construction
- High temperature resistant food grade silicone
Specifications
Capacity: 25 L
• Dimensions: H 64 cm x W 36 cm x D 37 cm
• Weight: 5.42 kg
• Power: 2200W
• Warranty: 3 years
NOTE: The Boiler is designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. When used with the Still Spirits Boiler 25 L lid or Alembic Dome, it is reasonably flexible and is sturdy enough to fit components within the following specifications:
• A total column & condenser height up to 1.1 m (3.6 ft) from the boiler lid or dome.
• A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg lbs) off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6") to the main column.
Included in Box
Create+ Boiler 25 L
• Create+ Boiler Lid
• 2" Tri-clamp to DN40 Threaded Adapter (includes: Silicon gasket and DN40 Nut)
• Instructions
